Product description

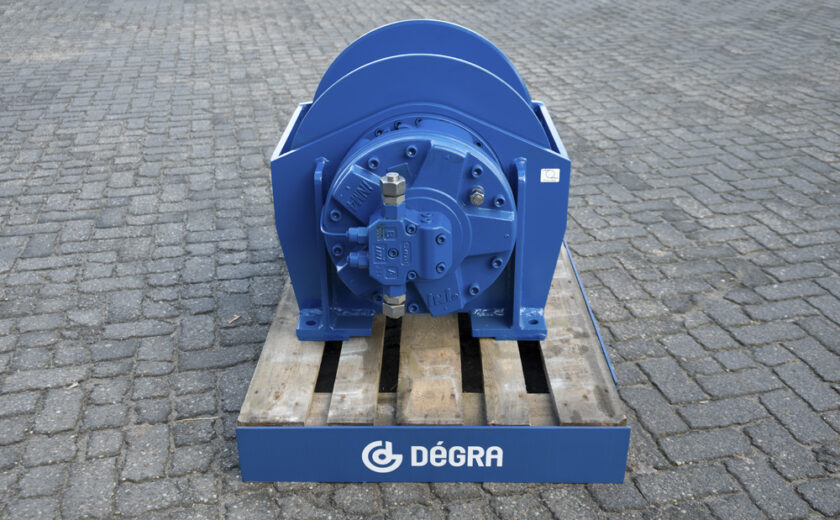

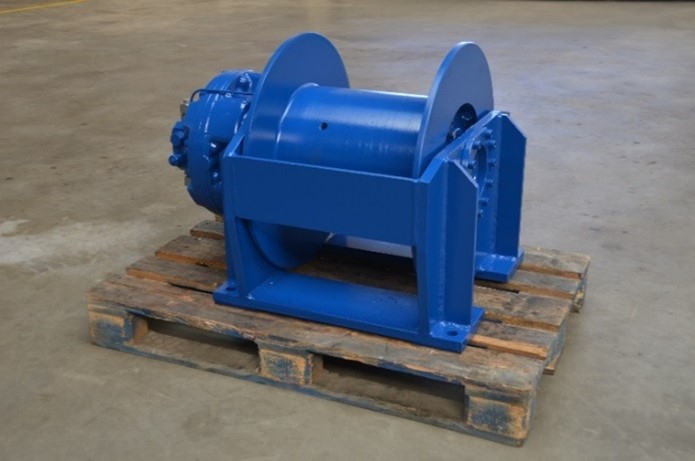

A hydraulic driven 5 ton hoisting winch fitted with a radial piston motor combined with a counter balance valve manifold connected to a planetary gearbox with an integrated fail safe multi disc brake.
Specification
Technical Data
- Line pull
- 50 kN
- Line speed
- 50 m/min
Dimensions
- Drum diameter
- 360 mm
- Drum length
- 410 mm
- Winch dimensions
- 901 x 682 x 655 mm
- Weight
- 555 kg
