Product description

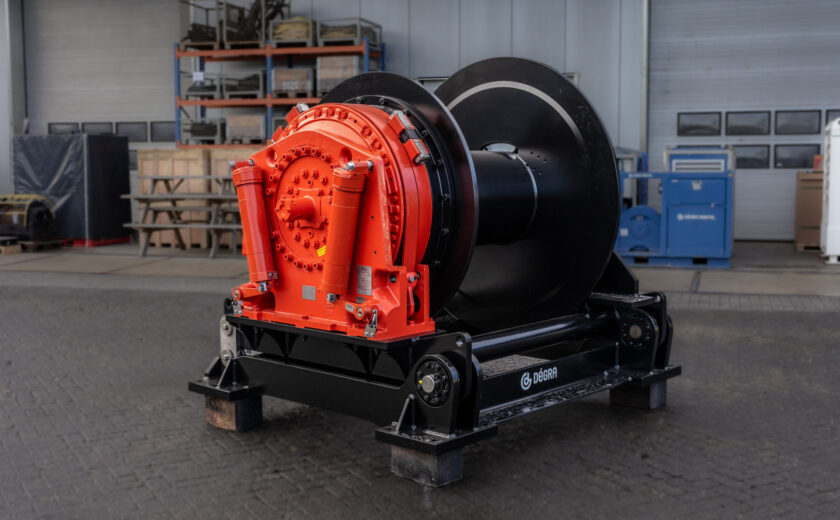

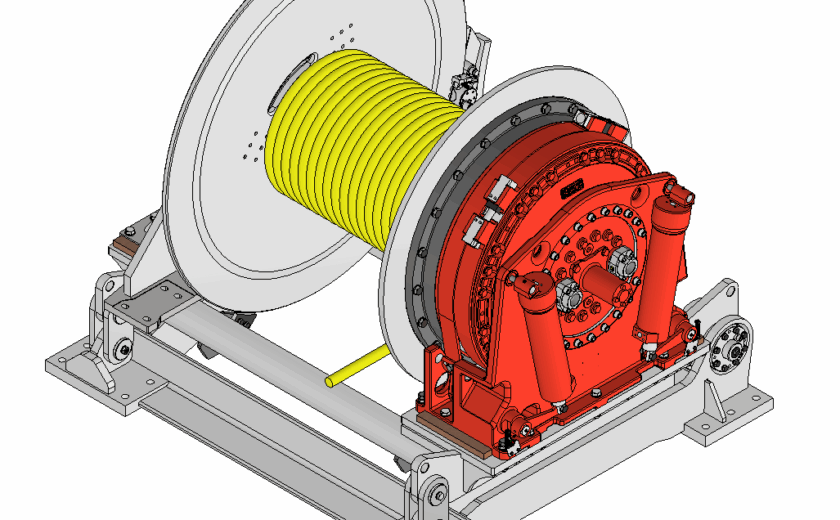

A hydraulic driven winch combined with a counter balance valve
manifold. This winch is equipped with a direct-drive Hägglunds MB84
radial piston motor with a displacement of 38.000 cc. Optionally, the
motor can be equipped with a displacement shift, giving it more speed
at a lower line pull.
Specification
Technical Data
- Line pull
- 470 kN
- Line speed
- 11 m/min
Dimensions
- Drum diameter
- 600 mm
- Drum length
- 1090 mm
- Winch dimensions
- 2415 x 1980 x 2019 mm
- Weight
- 8.800 kg
Service and extra's
Optionally equipped with:
- Constant tension
- Freewheeling
- Load measurement
- Dynamic brake
