Product description

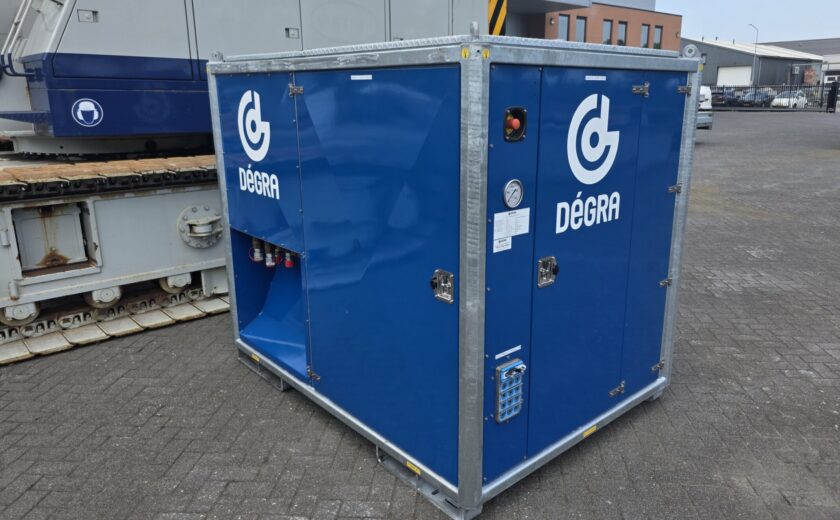

A 90 kW mounted hydraulic power unit with a working pressure up to 400 bar. Suitable for all kinds of hydraulic equipment. Settings can be changed to meet you technical specifications. In this unit a Wandfluh PMV22 control valve is integrated, this may also be a Danfoss control valve. Standard with radio remote control, wired control is an option. Easy to handle, maintain and control.
Specification
Technical date
- Power
- 2x45 kW
- Max. pressure
- 400 bar
- Max. flow
- 2x 200 L/min
Dimensions
- Dimensions
- 2200x1370x1910 mm
- Weight
- 3300 kg
